Gamia Wood Silver Grey Spiral staircase

The Gamia Wood Spiral Staircase is a high Quality, easy to build spiral staircase, The Gamia Range of staircases were developed with ease of installation in mind and are available in a range of sizes complete with a range of accesories to cater for most circumstances.
The use of wood treads allows this model to blend well in any room, giving warmth and simple elegance.

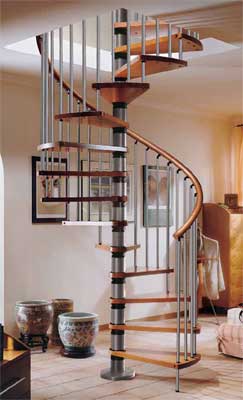

Please note the photo shows the staircase with the Optional Wooden Handrail, the standard kit comes with the Black plastic handrail you need to add on the appropriate wooden handrail kit for your staircase.

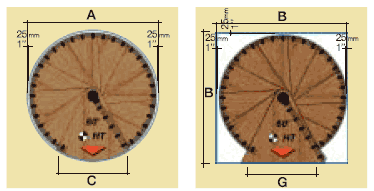

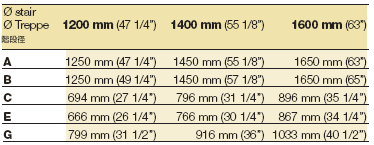

Diameters = Ø 120 cm - 140 cm - 160 cm

Steps -Manufactured from solid beech wood, thickness 38 mm (11/2”); step angle 30°,

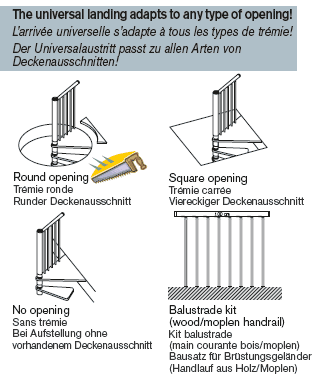

round or triangular landing angle 60°, square landing angle 90° for round or square opening
Riser heights - standard min. 210 mm. (8 1/4”) - max 230 mm. (9”) (for risers 200 - 210 mm.
(7 7/8” - 8 1/4”); 230 - 240 mm. (9” - 9 1/2”); it is possible to cut the balusters during the assembly.

Note UK Building Regs has a Maximum Rise Height of 220mm.
Please Note the 1200mm diameter Option will not comply with Building Regulations
Railing - with metal steel tubing balusters ø 22 mm. (7/8”)(clear space among the balusters < 100 mm., 4”);
flexible plastic handrail (handrail height = 1000 mm, 39 3/8”)
finishes and colours = wood: polished with water varnish (Natural 12); metal: durable
powder coat (silver grey); plastic components, rubber matting and screws: black

2008 - Trade Price list

Gamia Accesories

Wooden Handrail Kit options

Nationwide deliveries - We deliver all over the mainland UK.

We are currently offering Free Delivery on Spiral staircase orders.

Once you know your requirments our sales line is 01952 216000.
