At Stairplan we are the UK's leading supplier of Spacesaver Staircases.


Delivery
- Our normal delivery time on Spacesaver Staircases is delivery within 10 working days.


Nationwide deliveries
- We deliver all over the mainland UK.


What is a Space Saver Staircase?

A Space Saver Staircase is a Staircase that has alternating treads allowing you to get up a flight of stairs in approximately half the going distance of a normal flight of stairs.

Very popular for Loft conversions where space is of a premium.

Note - Our Space Saver staircases are manufactured to suit your Floor to Floor measurement, this is required to give you equal riser heights up the total staircase in order to comply with Building Regulations. Our Space saver staircases also comply with the 100mm sphere rules set out in the building regulations.

Video

Check that any other space saver staircases you are considering comply with the building regulations in these areas

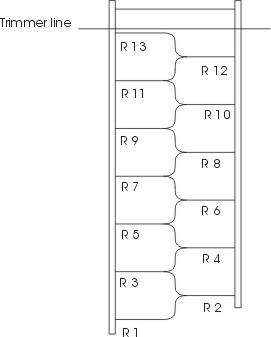

Spacesaver PlanOn the left you can see a typical plan layout of a space saver staircase .
The going space required for our space saver staircases with a typical 13 risers is 1460mm from the trimmer line to the face of the bottom nosing.

You can work out the total length by multiplying the number of risers your flight requires by 110mm (this gives you the 220mm Minimum Going size required by Building Regulations)and adding 20mm for the nosing overlap plus the thickness of a riser (between 9 & 18mm depending on model).

Our standard width is 650mm. If you require a different width we can make them to your required width.

All our Space savers are purpose made and are usualy manufactured in 10 working Days..

Visit our Showroom - Phone 01952 608853

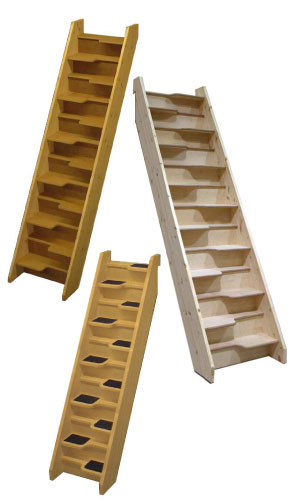

Standard Specification Models and Prices

Budget SpacesaverThe Budget Space Saver - 32 mm Engineered Pine Strings, 30mm MDF Treads, 12mm Risers

Assembled £299.00 + VAT (Up to 13 Risers)

Flatpack
£249.00 + VAT (Up to 13 Risers)
Standard Price covers Staircase options up to 13 risers, Wide range of floor to floor options, Widths 600mm, 650mm, 700mm 750mm and 800mm, Going 1460mm

Additional Risers £50.00 + VAT each
Going on 14 Riser Budget Space Saver 1570mm
Going on 15 Riser Budget Space Saver 1680mm

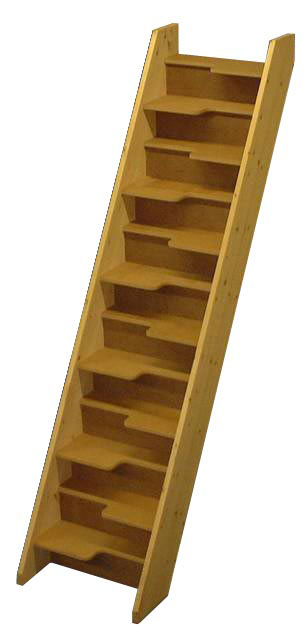

Pictured on the left our Budget space saver staircase shown here fully assembled, this staircase offers quality on a budget with its 30mm MDF treads it has a good structure.

Flatpack Spacasaver kits



New - Order online at Tradestairs.com



Budget Spacesaver Order Enquiry Form.



How do I order ?

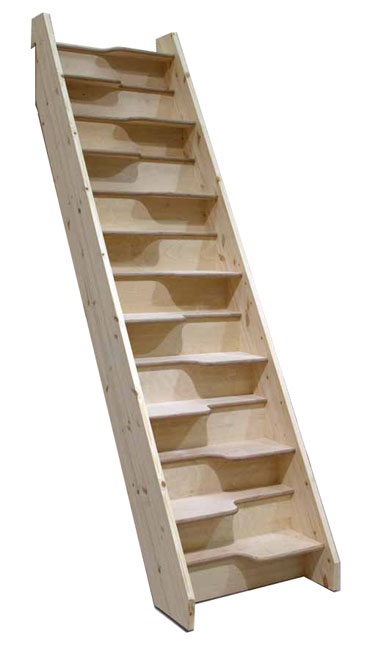

Birch 24 Spacesaver

The Birch 24 Space Saver - 32mm Engineered Pine Strings, 24mm Birch Plywood Treads and 9mm Birch plywood risers.

Assembled - £460.00 + VAT

Flat pack - £410.00 + VAT
Standard Price covers Staircase options up to 13 risers, Wide range of floor to floor options, Widths 600mm, 650mm, 700mm 750mm and 800mm, Going 1460mm

Additional Risers £50.00 + VAT each
Going on 14 Riser Budget Space Saver 1570mm
Going on 15 Riser Budget Space Saver 1680mm





The Birch 24 is a new model and this staircase offers excellent stability and gives you more opportunities to the finished product than MDF treads..
Specification:- Strings - 32mm Engineered Pine, Treads 24mm Birch Plywood, Risers 19mm Birch Plywood.
This is a quality staircase.

New - Order online at Tradestairs.com

Birch 24 Spacesaver Order Enquiry Form

How do I order ?














Beech 40 SpacesaverThe Beech 40 Space Saver - 40mm Engineered Beech Strings, 40mm Engineered Beech Treads and 9mm Beech faced Plywood risers .

Assembled £899.00 + VAT We can supply this flatpack if required
Standard Price covers Staircase options up to 13 risers, Wide range of floor to floor options, Widths 600mm, 650mm, 700mm and 750mm, Going 1470mm

Additional Risers £50.00 + VAT each
Going on 14 Riser Budget Space Saver 1580mm
Going on 15 Riser Budget Space Saver 1690mm


Beech 40
Space Saver Staircase
This model is built like a batleship with its 40mm treads and string sections making it a class leader in the Space Saver market.

New - Order online at Tradestairs.com

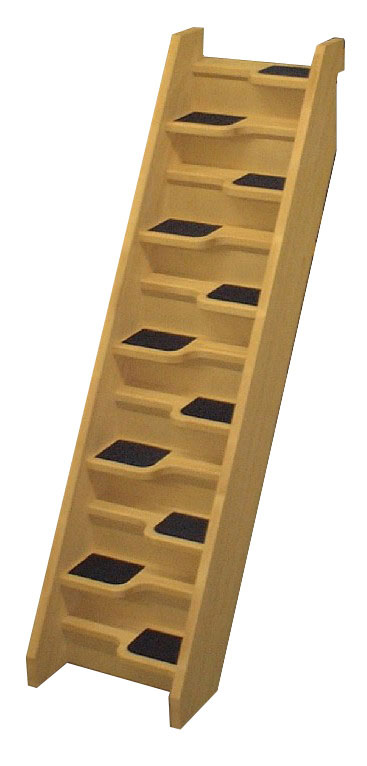

This picture shows the staircase with the optional carpet inserts for a closer look at the Beech look at the Bespoke Spacesavers Page

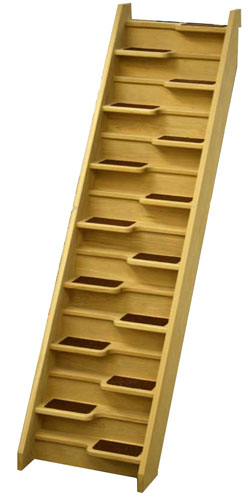

Oak 40 Spacesaver Staircase

Oak Spacesaver Staircase



The New Oak 40 Spacesaver staircase is also available to order online

We also offer These in Ash

Oak 40 Spacesaver Staircase Prices



How do I order ?

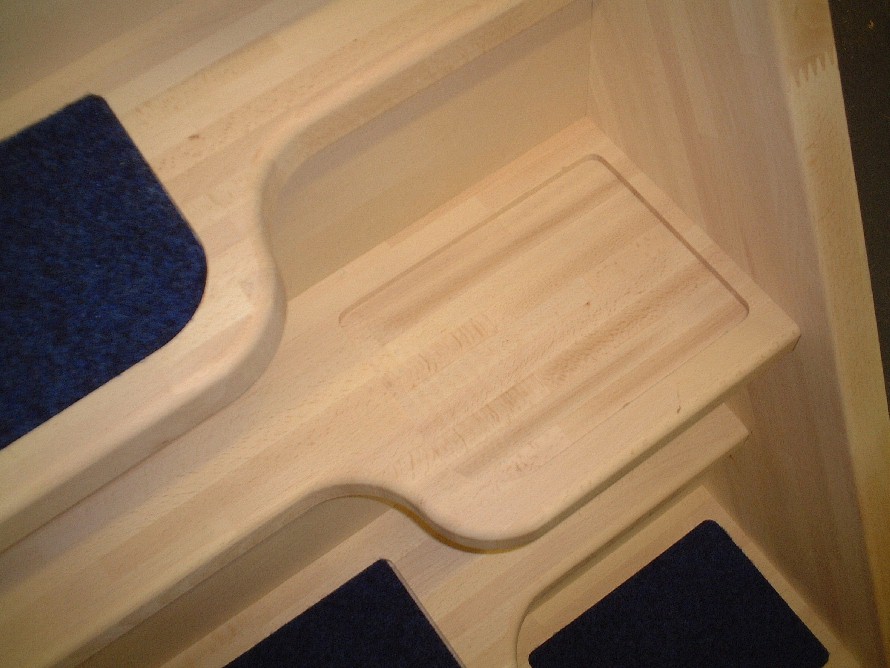

Carpet inserts are available for the Birch 24 and Beech 40 models at £10.00 + VAT per tread. This incudes machining the recess in to the Tread and a Carpet insert from our standard colour range.
New - You can see the selecion of colours offered on our online shop.



Handrails

We offer handrail systems on the different models
Budget Spacesaver - New style Handrail in Pine £ ASK + VAT per Side
Birch 24 Spacesaver - New style Handrail in Pine £ ASK + VAT per Side
Beech 40 Spacesaver - European style Handrail in Beech with tainless steel balusters £ ASK + VAT per Side

New Handrial Option
Budget Spacesaver - Handrail with Square newel posts and Balusters
Birch 24 Spacesaver - Handrail with Square newel posts and Balusters

Wall Handrails

We offer a range of Wall handrails as well.

90º Landing options are available at extra cost.

Note - The Budget, Birch 24 and Beech 40 Spacesaver staircase options above are constructed using traditional staircase methods with the treads and the risers housed into the strings producing a quality staircase.

These space saver staircases conform to current UK building regulations for alternating tread staircases.

I wont fit ?
On our standard space saver range we set out our staircases with the 220mm minimum going size set by Building regulations, the rise height is then adjusted to suit your floor level keeping the riser height within the riser heights set out in Building Regulations Document K if you can get away with less risers eg:- 12 risers the going would be 1350mm.

The Well opening
We recommend a typical well opening of 1500mm long by at least the width of the staircase depending on your handrail detail. This length of 1500mm is best set once the staircase is in place to whatever you fell is comfortable when walking forward down the staircase, the typical 2000mm headroom above the pitch line isnt any good on a space saver staircase due to the angle you approach the bulkhead. Be aware of claims for products requiring a smaller well opening this maybe for an item classed as a "Fixed Ladder".


How do I order ?



New - Ash Spacesaver Staircases

Ash Spacesaver Staircases

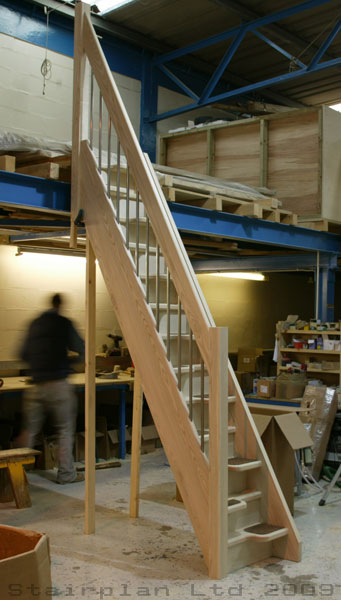

Ash 40 Spacesaver Staircase

Shown here on the left with the European Style handrail and optional Carpet Inserts
