Open Plan Staircases

Oak Openplan with the European Style handrail

What is and Openplan Staircase ?

A Open plan is a staircase with openings where there are normaly risers, regulations state you must not be able to pass a 100mm sphere through the opening, this is why we have either a Riser downstand or a Bar on the drawings below. Open Plan Staircases are more expensive than closed staircases as they take longer to manufacture than closed.

Oak Openplan with our European Style Handrail




Parana Pine Openplan Staircase

Parana Pine Openplan Staircase

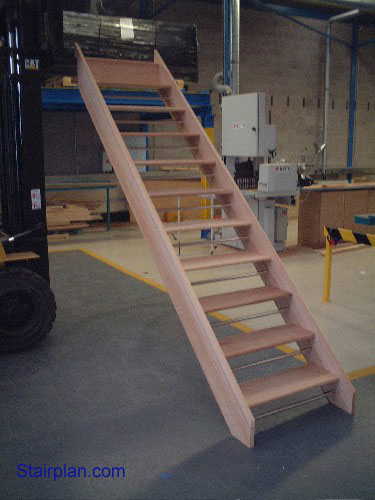

The staircase on the left is a Straight staircase in Parana Pine with Stainless steel Riser safety bars, you can see the top riser of the staircase is a closed riser this is to hide the face of your top trimmer joist on the upper floor level.



Specification.

Strings - Parana Pine
Treads - 30mm Parana Pine
Riser Bars - Stainless Steel



Parana Pine is a fairly hardwearing Softwood.



We recommend using hardwoods on openplan staircases .



The UK Building regulations require that a 100mm sphere should not be able to be passed through at any point on the staircase .



Traditional Parana Pine Openplan Staircase


Parana Pine Traditional openplan staircase with Riser Downstands.


The staircase on the left is another Straight staircase in Parana Pine this time with traditional Riser Downstands,again you can see the top riser of the staircase is a closed riser this is to hide the face of your top trimmer joist on the upper floor level.



On this staircase they are having a handrail to one side and landing balustrading to both sides, when you order a staircase with handrail from stairplan the newel posts are mortised ready , the strings are tenoned , the handrail is cut the base rail is cut and all the spindles are cut ready the only parts that are not cut ready are the spacers for between the spindles. The handrail is connected to the newel posts using our Stelten fixings, the newel posts are pre-drilled for these and these are fixed to the handrail ready for you.



Specification

Strings - Parana Pine
Treads - Parana Pine
Risers - Openplan style with Riser Dwonstands
Newel Posts - Hemlock 90mm Square
Handrail - Hemlock HDR Profile







Beech Openplan Staircase

Beech Openplan Staircase

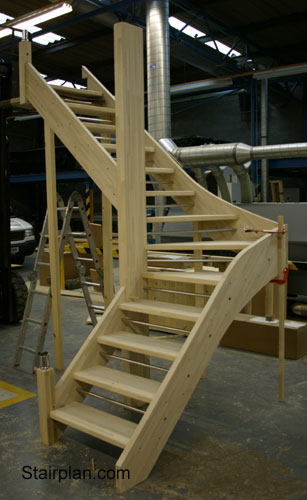

Here you can see a Beech openplan Winder Staircase

you can see this has the riser safety bars again.





Specification

Strings - 40mm Engineered Beech
Treads - 40mm Engineered Beech
Newel Bases - Engineered Beech

(Engineered Beech is Finger jointed Beech)

This staircase is going the have the Fusion handrail system install on it.











Beech Openplan Staircase - European Style Handrail

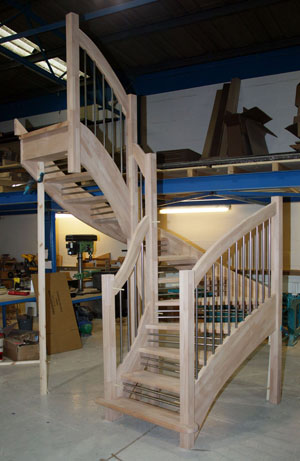

Beech Openplan Staircase with the European style handrail.

This is another beech openplan Staircase this time with the european style handrail and the optional Twin Riser safety bars, the beech used in this one is Engineered Steamed Beech (all our Engineered Beech is now Steamed)

Specification

Strings - 40mm Engineered Beech
Treads - 40mm Engineered Beech
Risers - Openplan style with Twin Riser safety bars in Stainless Steel
Newel Posts - Engineered Beech
Handrails - European Style with Stainless steel Balusters.

Look on

European Style Handrail
Oak Openplan
More Openplan

Oak European style Open Riser Staircase




Traditional Riser Downstand Detail

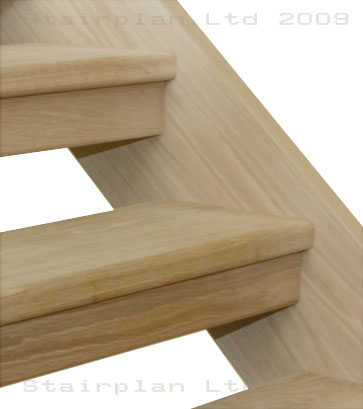

Traditional riser Downstand detail in OakThe image on the left shows the Oak Openplan Traditional riser downstand detail.

A riser downstand is used to limit the open space to less than 100mm as required by the Buidling Regulations.

Other points of interest

Townsend Tread Detail

How to get a quick quote ?

If you can identify a staircase that is similar to what you are looking for from our online library of staircase plans we can give you a price over the phone based on that particular staircase layout and the material specification you require.
