Winder Staircases

Winder Staircases double kite winder staircase

Winder Staircases

On this page you can get some of our winder staircase being pre-assembled in our workshop prior to delivery.

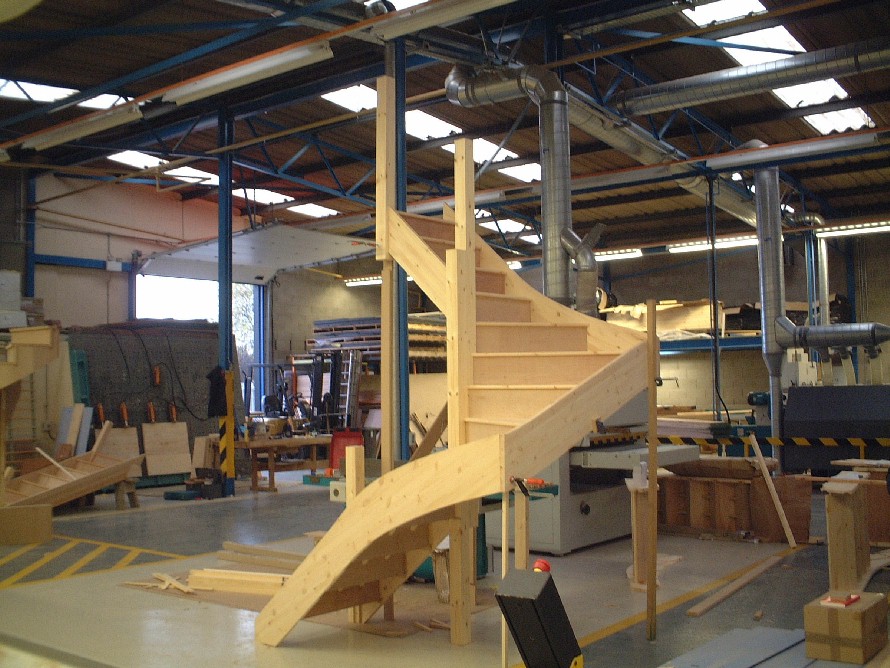

Double Winder

The Staircase on the left is what we call a double winder staircase, the staircase turns through two 90 degree turns (180 degrees). Each winder turn has a 3 tread kite winder design.

This staircase is to have no handrails because it is going to have wall to both sides of the staircase because of that the newel posts are only stub newels (not high enough to receive handrail or newel turnings) Both of the newels are load bearing (they go down to the floor)
This staircase has Engineered Pine Strings, treads and newels with plywood risers.

(Engineered Pine is a stable quality timber)

Specification
Strings – 32mm Engineered Pine
Winder Treads – 22mm Engineered Pine
Treads – 22mm Engineered Pine
Risers –9mm Plywood
Newel Posts – 90 x 90mm Pine

This staircase would be delivered in 3 sections, the winder treads and newel posts would come loose ready for site assembly.



We have a Limited number of Double Winder Staircases available to order Through our online store these are classed as standard layouts so they are at a lower cost than a made to measure double winder staircase - Double Winder Staircases to order online.

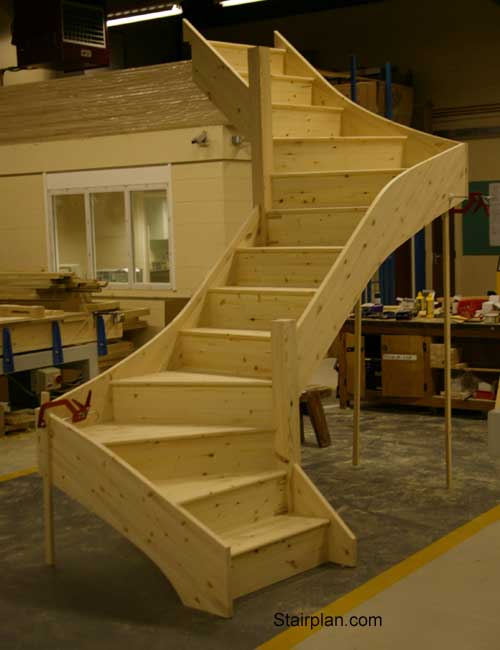

Z form winder staircaseZ Form Winder Staircase

This is a winder staircase in a Z-Form the first winder goes to the right and then the next one goes to the left useful in some situations, this one is all in Engineered Pine.



Specification
Strings – 32mm Engineered Pine
Winder Treads – 22mm Engineered Pine
Treads – 22mm Engineered Pine
Risers –22mm Engineered Pine
Newel Posts – 90 x 90mm Pine



Again this staircase has no handrails and is going to be enclosed between walls.

Having the staircase fully assembled in the workshop prior ensures everything goes together for an easy installation.

Many other stair manufacturing companies leave many elements uncut and this is left for the installer.



How to get a quick quote ?

If you can identify a staircase that is similar to what you are looking for from our online library of staircase plans we can give you a price over the phone based on that particular staircase layout and the material specification you require.
Staircase Plans.


Single Winder stair

Above - Single Winder staircase

This staircase is what we call a single winder staircase the staircase has 1 90 degree turn.

Specification
Strings – 32mm Engineered Pine
Winder Treads – 22mm Engineered Pine
Treads – 22mm Engineered Pine
Risers –9mm Plywood
Newel Posts – 90 x 90mm Pine
New look at our Standard Winder Staircase selection

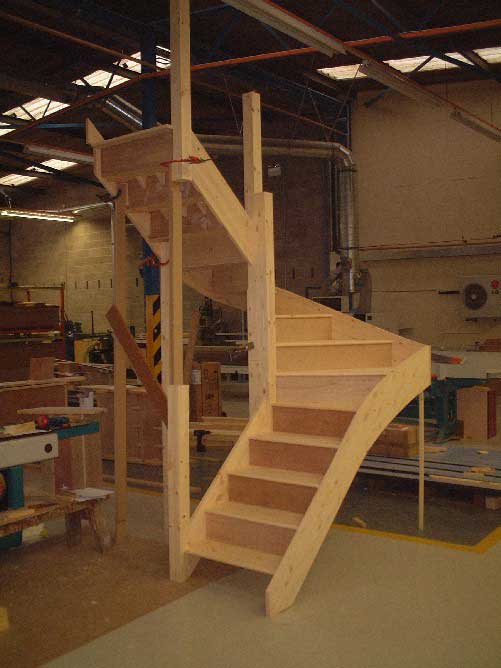

Double winder stairs
Double winder staircase in standard pine spec

Above - Double Winder Staircase

The staircase above is going to have handrails on the flight you can see the newel posts are at handrail height, the handrails will be pre-cut for this flight before it leaves the factory.

Specification
Strings – 32mm Engineered Pine
Winder Treads – 22mm Engineered Pine
Treads – 22mm Engineered Pine
Risers –9mm Plywood
Newel Posts – 90 x 90mm Pine

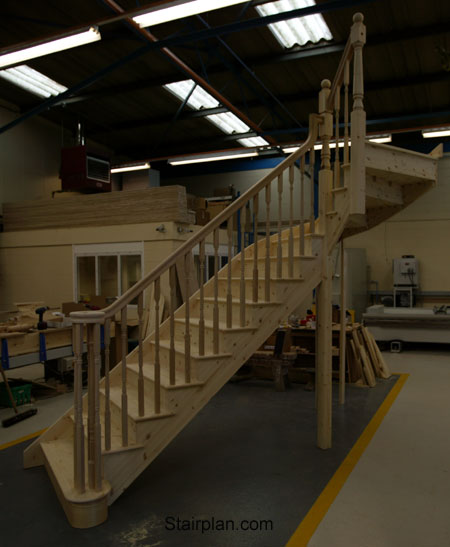

Cut String Winder staircase

Above - Cut String Winder Staircase

This winder staircase has a Cut String detail to the face side this is more work than a closed string as seen on the earlier staircases and this adds more cost to the staircase, also on theis staircase you can see a Curtail entry step complete with a Volute detail on the handrail.
The Newel posts and Spindles are Turned.

Specification
Strings – 32mm Engineered Pine
Winder Treads – 22mm Engineered Pine
Treads – 22mm Engineered Pine
Risers –22mm Engineered Pine
Newel Posts – 90mm Pine Turned
Spindles - 32mm Georgian Hemlock
Handrail - HDR Profile in Hemlock

There are many more examples of Winder Staircases across the website.

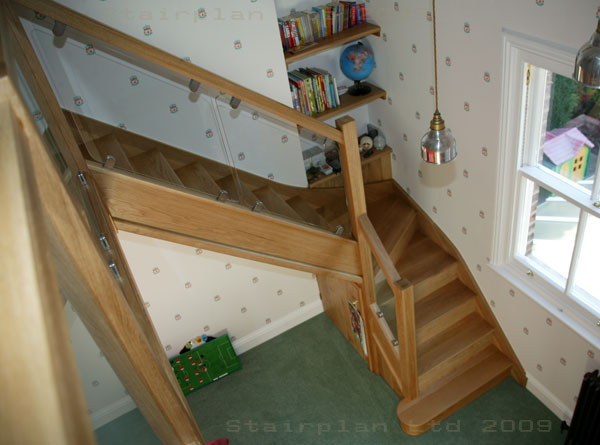

Oak Winder Staircase with Stairplan's Vision Balustrade

Oak Winder Staircase with stairplan's Vision Balustrade

Vision Glass Balustrade option
