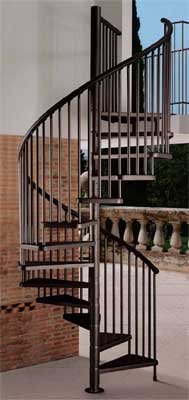

Exterior Spiral staircase

The exterior staircase…with that extra touch!!
Finished with special treatments thatavoid any defects caused by the normal galvanising applications!

All nuts and bolts are in stainless steel.

Practical, thanks to the modular no post system,
it may be rapidly and easily installed thanks to the fact that the stair risers may be adjusted.

The Exterior Spiral is supplied with a triangular landing and the direction either clockwise or anticlockwise can be decided during the assembly.

The handrail is in moplen with an ergonomic design which grants an easy grip.

Treads have non-slip strips.

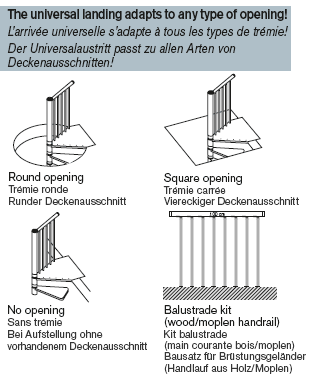

The basic model includes 12 steps + 1 universal landing + railing with handrail... but you can personalise your staircase thanks to the accessories!

For the spiral staircases Exterior the minimum ideal opening should be 5 cm larger than the diameter of the staircase.

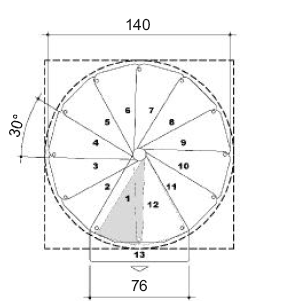

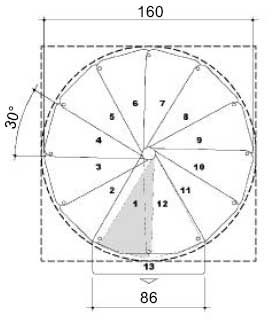

Diameters = Ø 120 cm - 140 cm - 160 cm

The basic model gives you a total of 13 Risers
Total height min/max = 2730/2990 mm Risers adjust from 210 to 230mm (220 is UK Max rise height)
Extra treads are available to increase height of stairs. (Max height 3680mm). For lower heights than standard, simply leave out the appropriate amount of treads.
Colour of the steel = Anthracite grey
Colour of the handrail = Black
Protective treatment against any type of weather conditions!

Nationwide deliveries - We deliver all over the mainland UK.

2008 Prices

Product Code	Description	Price exc VAT
9E/310	EXTERNAL SPIRAL STAIRCASE KIT 1200mm (12 TREADS & LANDING)	£1047.55 + VAT
9E/320	EXTERNAL SPIRAL STAIRCASE KIT 1400mm (12 TREADS & LANDING)	£1107.92 + VAT
9E/340	EXTERNAL SPIRAL STAIRCASE KIT 1600mm (12 TREADS & LANDING)	£1266.00 + VAT
	Extra Tread Packs come complete with additional Balusters & Handrail.
J9/1310	EXTERNAL 1200mm TREAD PACK	£123.90 + VAT
J9/1320	EXTERNAL 1400mm TREAD PACK	£133.62 + VAT
J9/1340	EXTERNAL 1600mm TREAD PACK	£155.61 + VAT
	Balustrade Kit comes with 1M Handrail & 8 Balusters + Nuts & Bolts
J9/2005	EXTERNAL 1m BALUSTRADE KIT WITH 8 BALUSTERS	£149.47 + VAT

New Products relating to the External Spiral

99/50177001 - Exterior Baluster to Baluster Connector - £ 25.00 + VAT

99/50187001 - Exterior Baluster to Wall Connector - £ 25.00 + VAT

99/50197001 - Exterior Baluster to Floor Stiffener Kit - £ 40.90 + VAT

I am afraid the External Spiral isnt currently available on our online online shop facility but once you know your requirments our sales line is 01952 216000.
