Fusion Handrail Configurations Page 2

Help with your staircase

Use these images to help you with the Fusion handrail system on your staircase.

Fusion handrail Standard exit detail

Fusion handrail Standard top exit detail .

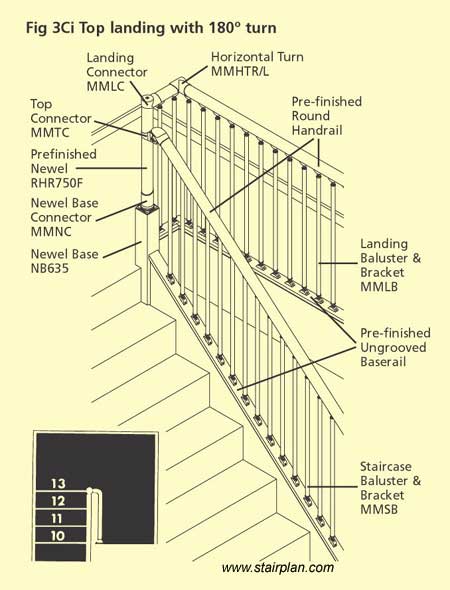

Fusion handrail top detail with dropped quarter landing

Fusion to detail on a starcase with a Dropped quarter landing turn at the Top.

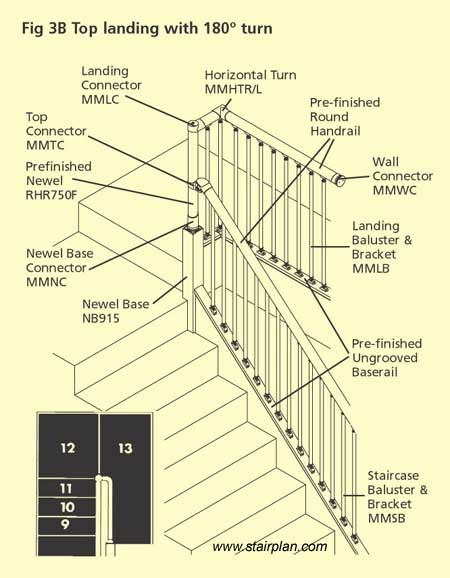

Standard Top detail with a 180 degree turn

Fusion handrail standard top detail with a 180 degree turn - Enough space is required to use a MMLC* Landing Connector and a MMHTR/L* Horizontal turn connector - These 2 fittings are the tightest way to do this detail.

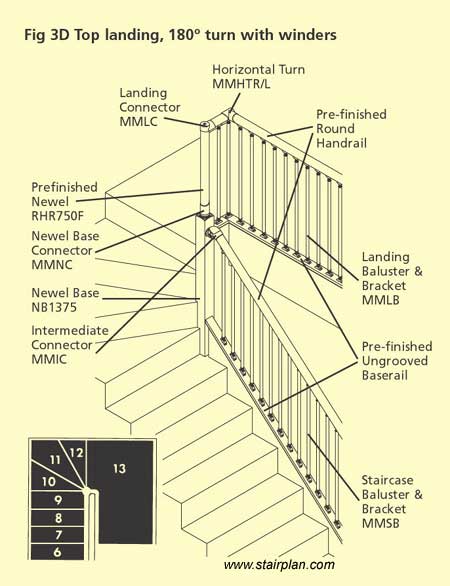

Fusion handrail on a staircase with a winder at the top

Fusion on a Staircase with a winder detail at the top.

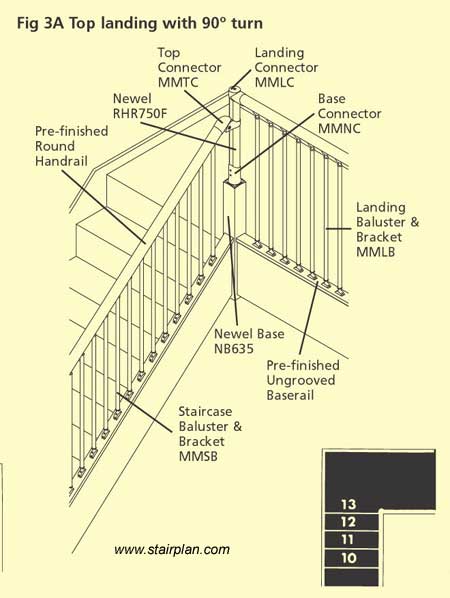

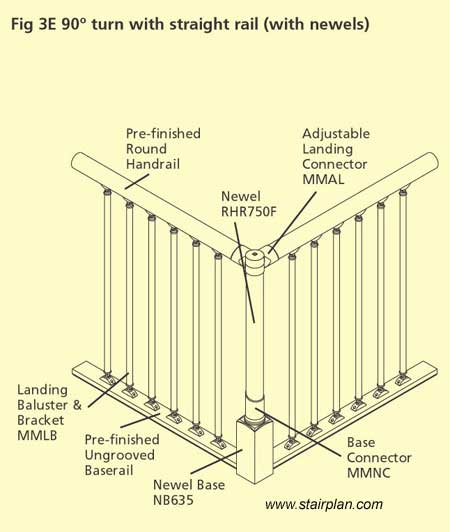

Fusion handrail Landing turn detail.

Fusion handrail detail at a landing corner.

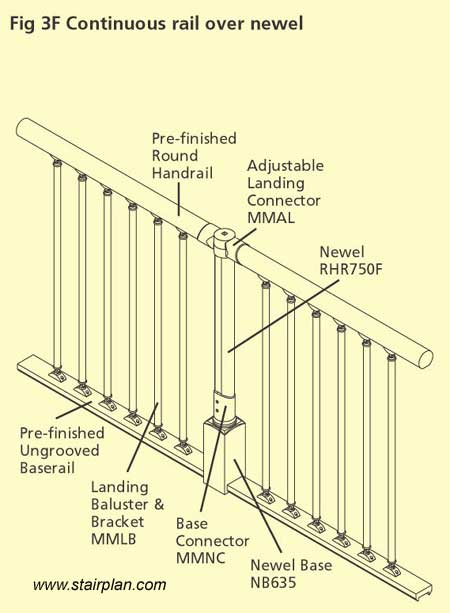

Fusion handrail Intermediate landing Newel

On a landing handrail run the length should not exeed 2400mm without a intermediate newel post.

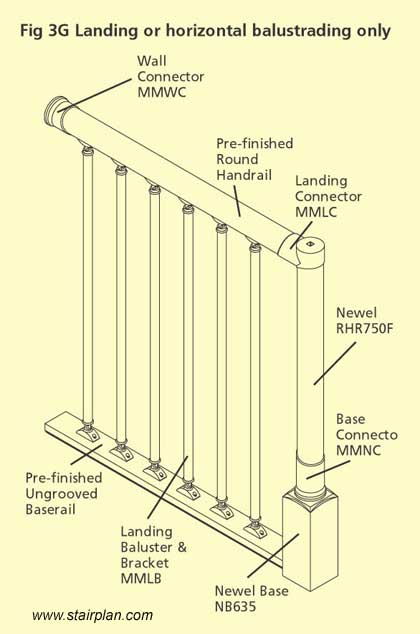

Simple landing rail with fusion

Simple landing handrail detail with the Fusion handrail System.
